The VentGuard Plus is a cost effective BS6173 and IGEM/
UP/19 compliant ventilation interlock, with built in fan
current monitors for the intake and extract fans however
can still be used with Air DP Switches.
The push button setup for the Fan Current Monitor
configuration makes commissioning simple. Just set your
fan to the Min/Max speeds, press the button to set, then
select your tolerance.
With dedicated interfaces and LEDs for the intake and
extract fans, the VentGuard will provide an indication of
any ventilation issues however will not shut down the gas
supply until the ventilation has not been operating for a
full 30 seconds to avoid any nuisance tripping.

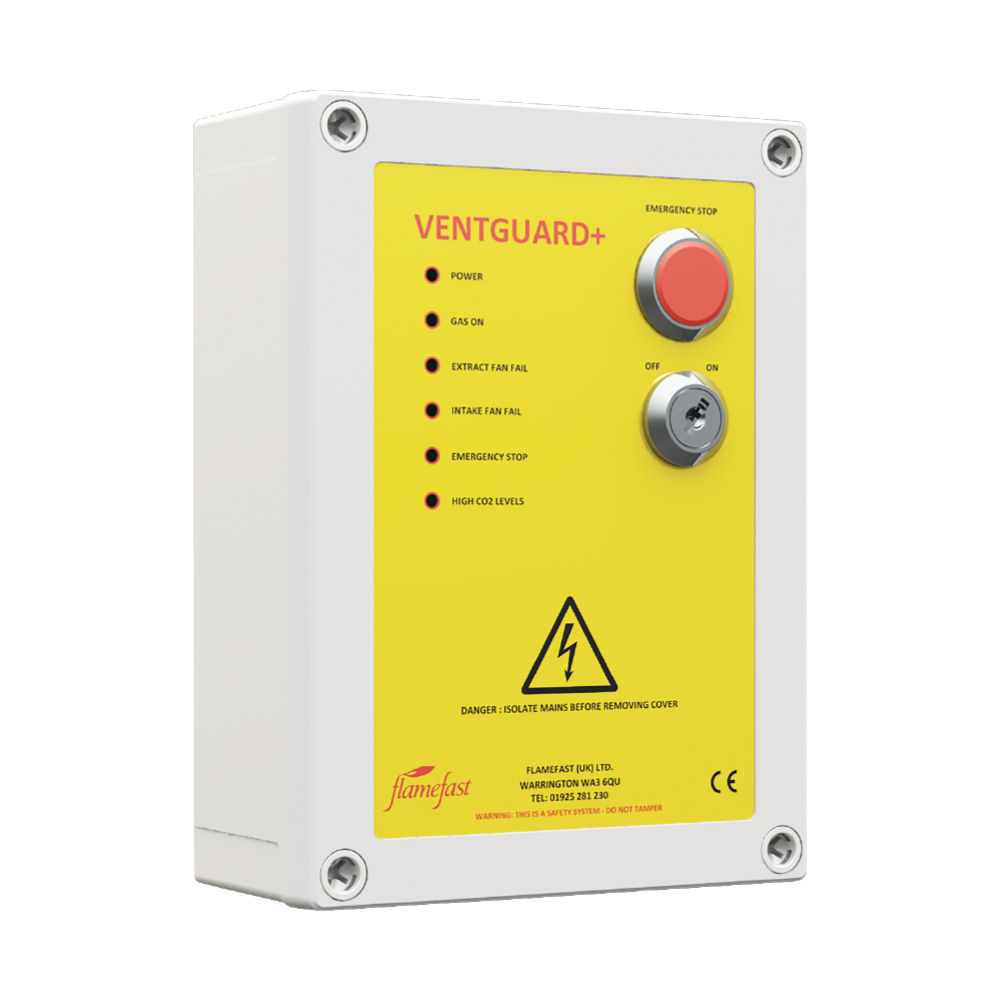

Ventguard Plus c/w Current Monitors
£250.00Price
Excluding VAT
- Clear LED indication
- Push Button Fan Current Monitor configuration
- Selectable alarm tolerance
- Wide current range
- Integral 2 Channel Fan Current Monitor
- Interfaces for:
- Intake Fan DP
- Extract Fan DP
- CO2 Sensors
- Remote Emergency Stop Buttons - Mains rated status relay for external monitoring
- Built in time delays to avoid nuisance tripping
